ZnTe crystal
- Brand: Eachwave
- Type: ZnTe-110-10
The application fields of zinc telluride are THz detectors; THz emitters; IR optics; substrates; crystal pieces for vapour deposition; optical limiters.
Structure
Cubic zincblende
Density:
5.633 g/ cm3
Specific Heat:
0.16 J/gK
Eg (300 K)
2.25 eV
Max. Transmittance
(λ =7-12 μm):
60 %
Max. specific resistivity
109 Ohm*cm
Refractive index
(λ =10.6 μm):
2.7
Electrooptical coefficient r41 (λ =10.6 μm):
4.0×10-12 m/V
Specific resistivity
a). low: < 103 Ohm*cm
b). high: > 106 Ohm*cm
Max. IR-optic blank diameter/length:
Ø 38×20 mm
Max. single crystal diameter/length:
Ø 38×20 mm

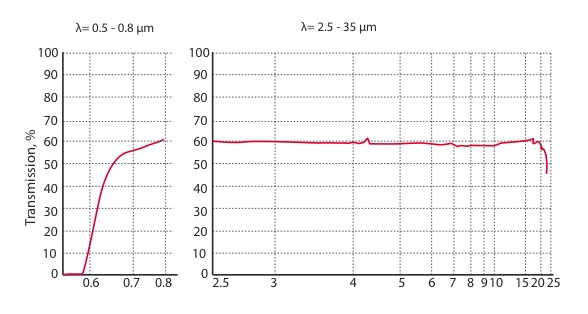

ZnTe Transmission
ZnTe products
--These ZnTe crystals with size 10mm*10mm could be mounted in 25.4mm ring holder
Model number
Orientation
Size
Thickness
Quantity
ZnTe-110-10-0.1
<110>-cut
10mm*10mm
0.1mm
1pc
ZnTe-110-10-0.2
<110>-cut
10mm*10mm
0.2mm
0
ZnTe-110-10-0.3
<110>-cut
10mm*10mm
0.3mm
0
ZnTe-110-10-0.5
<110>-cut
10mm*10mm
0.5mm
4pcs
ZnTe-110-10-1
<110>-cut
10mm*10mm
1mm
6pcs
ZnTe-110-10-2
<110>-cut
10mm*10mm
2mm
4pcs
ZnTe-110-10-10-0.1-2
ZnTecrystal with a thickness of 100μm optically contacted on ZnTesustrate with a thickness of 2mm
0pc

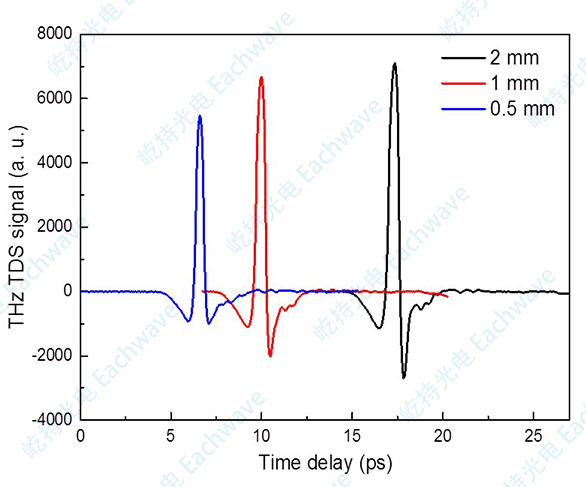

Emitter: 0.5mm crystal; Detector: 0.5mm, 1mm, 2mm
